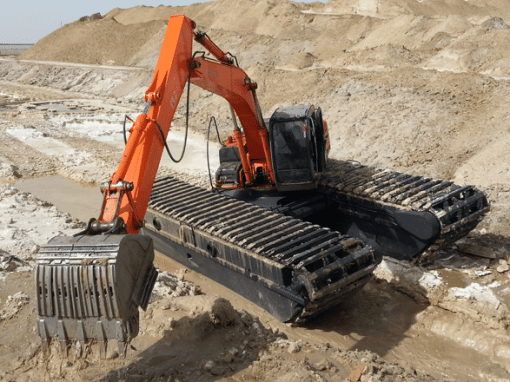

The 30-ton amphibious excavator is a large machine. Primarily plays a role in cleaning tailings dams during mining operations or in deepening waterways and river deltas. Compared with ordinary amphibious excavators, the excavation efficiency is higher.
30 Tons Amphibious Excavator
Suitable for multi-brand upper structure excavators.
Material : Q355B and above
Track Chains : Two or Three pieces
Floating : Optional
Travel Motor : Two or Four pieces
Optional match : Long boom, dredging pump, etc.
First acquaintance with amphibious excavators
The amphibious excavator/swamp buggy is specially designed to maneuver in swamps, swampy areas, and loose terrain, and it can also float on water as an added safety feature. Since he is converted from an excavator, he can access almost any terrain. Greater versatility is easily achieved when combined with the wide range of attachments we produce.
Extra Pontoon
Supplementary pontoons can be added on each side to make the whole floating pontoon form a square-like operating platform and enhance stability.
Hydraulic Spuds
Hydraulic spuds can overcome buoyancy in deep water, provide additional stability and enhance operability on the water up to 8 meters deep.
Extendable Function
Hydraulic extendable pontoon system offers the flexibility of narrow track width when fully retracted, particularly useful during transportation.
30-ton amphibious excavators are often used in harsh environments due to their large tonnage. It can often be seen in winter river ice breaking, snow excavation and other working conditions. Large amphibious excavators are usually recommended to be used with large pontoon undercarriage to increase safety and stability. Of course, an experienced driver is also indispensable.
Undercarriage Features
Extendable and retractor pontoon system.
Three separate rooms per pontoon, hermetically sealed.
Three service manholes on each pontoon for easy maintenance and field servicing.
Hardened rollers and bushings for extended operating life.
Modular design for easy transportation.
Specifications
30 Tons Amphibious Excavator
Product Model
AE300
General parameters
Length of pontoon (A)
10200 mm
Overall length (C)
12557 mm
Counterweight clearance (E)
2256 mm
Width of pontoon (G)
1970 mm
Height of pontoon (I)
2040 mm
Upper structure width (K)
2960 mm
Long reach front (Options)
H22/0.45 m³
Length of Rear upper structure (B)
2995 mm
Boom transport height (D)
4247 mm
Overall width (F)
6165 mm
Min. ground clearance (H)
1456 mm
Cab height (J)
4247 mm
Bucket capacity
1.3 m³
Pontoon Undercarriage
Length of pontoons
10200 mm
Height of pontoons
2040 mm
Matched excavators weight
28T-30T
Width of pontoons
1970 mm
Overall width
6165 mm
Extendable Undercarriage
Length of pontoons
10200 mm
Height of pontoons
2040 mm
Matched excavators weight
28T-30T
Width of pontoons
1970 mm
Overall width
6165-7165 mm
